Biaxial / Triaxial Accelerometers
更新：2016/9/30 15:07:06 點擊：
- 產品品牌 CTC
- 產品型號 AC115
- 產品描述 雙軸/三軸加速度計...
產品介紹
Biaxial / Triaxial Accelerometers
 |  |  |
|  | |

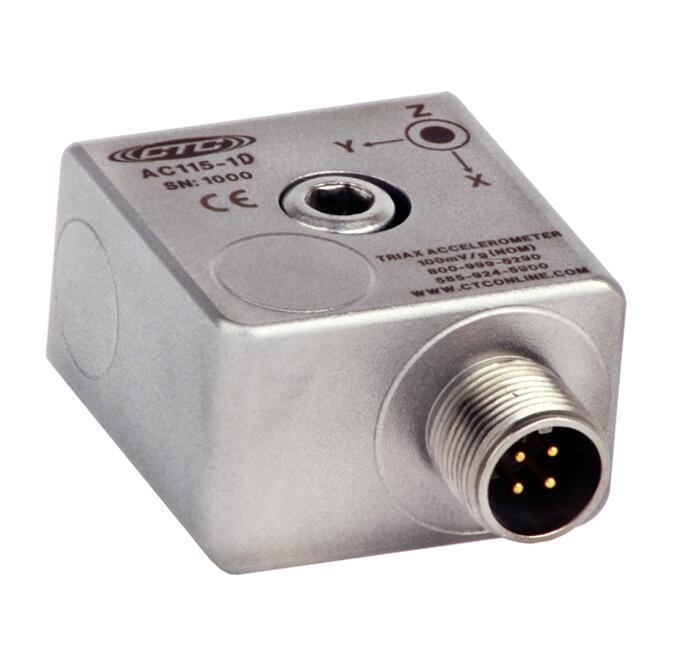

| Series Name | AC115  | AC115-M12D | AC119 | AC119-M12D | AC132 |
| Description | Low Cost Triaxial Accelerometer, Connector / Cable, 100 mV/g | Low Cost Triaxial Accelerometer, Connector / Cable, 100 mV/g, 4 pin M12 connector | Biaxial accelerometer, 100 mV/g, with X and Z axis | Biaxial accelerometer, 100 mV/g, with X and Z axis4, 4 pin M12 connector | Low Cost Triaxial Accelerometer, for Modal & ODS Analysis, Connector/Cable, 10 mV/g |
| Sensitivity | 100 mV/g | 100 mV/g | 100 mV/g | 100 mV/g | 10 mV/g |
| Frequency Response (±3dB) | 60-390,000 CPM | 60-390,000 CPM | 60-390,000 CPM | 60-390,000 CPM | 60-480,000 CPM |
| Dynamic Range | ± 50 g, peak | ± 50 g, peak | ± 50 g, peak | ± 50 g, peak | ± 500 g, peak |
| Power Requirements Voltage Source | 18-30 VDC | 18-30 VDC | 18-30 VDC | 18-30 VDC | 18-30 VDC |
| Temperature Range | -58 to 250°F (-50 to 121°C) | -58 to 250°F (-50 to 121°C) | -58 to 250°F (-50 to 121°C) | -58 to 250°F (-50 to 121°C) | -58 to 250°F (-50 to 121°C) |
| Case Material | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel |
| Connector | 4 Pin J Connector | 4 Pin M12 Connector | 3 Pin MIL | 4 Pin M12 Connector | 4 Pin J Connector |
| Max Temp | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) |
 |  |  |  |  | |
| Series Name | AC155 | AC230 | AC232 | AC360 | AC365 |
| Description | Low Cost Triaxial Accelerometer, 100 mV/g, 4 Pin Top Exit Connector, for Use in Modal and ODS Analysis. | Premium Series Triaxial Accelerometer, Connector / Cable, 100 mV/g | Premium Modal/ODS Triaxial Accelerometer, Connector/Cable, 10 mV/g, ± 5% | Modal/ODS Triaxial Accelerometer, Connector / Cable, 100 mV/g | Premium triaxial sensor, for ODS and Modal analysis, top connector, |
| Sensitivity | 100 mV/g | 100 mV/g | 10 mV/g | 100 mV/g | 100 mV/g |
| Frequency Response (±3dB) | 36-390,000 CPM | 36-600,000 CPM | 60-600,000 CPM | 36-600,000 CPM | 36-600,000 CPM |
| Dynamic Range | ± 50 g, peak | ± 50 g, peak | ± 500 g, peak | ± 50 g, peak | ± 50 g, peak |
| Power Requirements Voltage Source | 18-30 VDC | 18-30 VDC | 18-30 VDC | 18-30 VDC | 18-30 VDC |
| Temperature Range | -65 to 250°F (-54 to 121°C) | -65 to 250°F (-54 to 121°C) | -65 to 250°F (-54 to 121°C) | -65 to 250°F (-54 to 121°C) | -65 to 250°F (-54 to 121°C) |
| Case Material | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel | 316L Stainless Steel |
| Connector | 4 Pin J Connector | 4 Pin J Connector | 4 Pin J Connector | 4 Pin J Connector | 4 Pin J Connector |
| Max Temp | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) | 250°F (121°C) |
